CAT6A F/UTP 23AWG LSZH CABLE 500M Orange

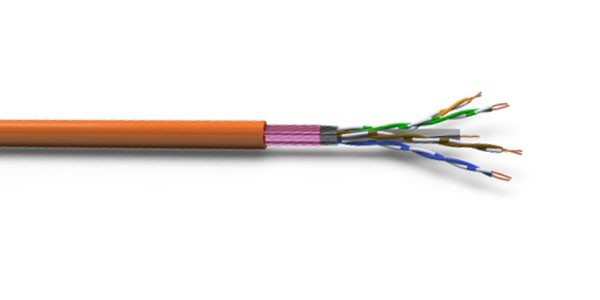

CAT6A F/UTP 23AWG LSZH CABLE 500M Orange

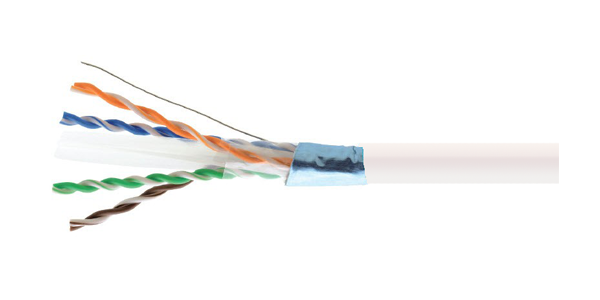

CAT6A F/UTP 23AWG LSZH CABLE 500M ,White

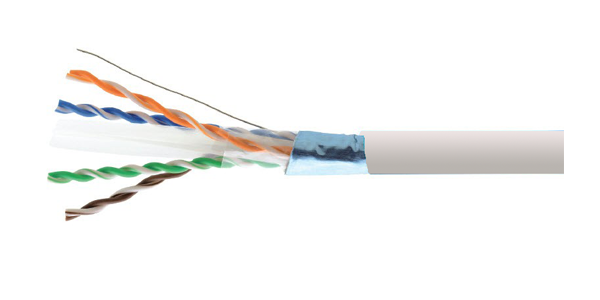

CAT6A F/UTP 23AWG LSZH CABLE 500M ,Gery

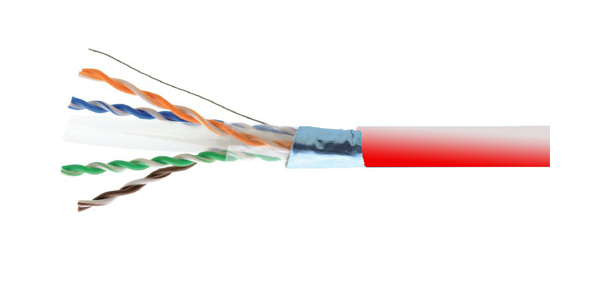

CAT6A F/UTP 23AWG LSZH CABLE 500M ,Red
CAT6A F/UTP 23AWG LSZH CABLE 500M ,Blue

CAT6A F/UTP 23AWG LSZH CABLE 500M

Data cable for analogue and digital signal transmission in the frequency range up to 500 MHz. It is designed for primary (campus), secondary (riser) and tertiary (horizontal) wiring

Use: IEEE 802.3; 10/100/1000/10GBase-T, FDDI, broadband, video, ISDN, ATM, PoE

SKU: V-C6A3TL57 Category:
Share on:

Description

Thermal & mechanical property

Temperature range during installation   0°C to +50°C
Temperature range stationary   -20°C to +60°C
Min. bending radius under tensile load   8 x diameter
Min. bending radius without tensile load   4 x diameter
Maximum traction   100N

Standards

  • EN 50288-5-1 • EN 50288-11-1 • IEC 61156-5 • EN 50173-1
  • ISO/IEC 11801 2. edition
  • IEC 60332-1 • EN 50575 • IEC 60754-2 • EN 61034 • IEC 61034
  • EN 13501-6 class Eca • RoHS 2011/65/EU • RoHS 2002/95/EC
  • RoHS2002/95/EC • IEC 60811-2

Additional information

Color

Blue, Grey, Orange, Red, White
